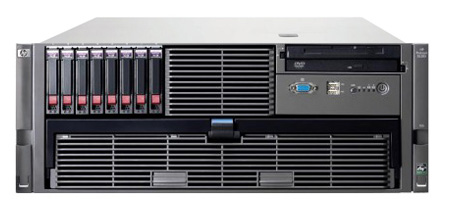

HP DL585 G6
| 整機信息 | |
| 名稱 | HP ProLiant DL585 G6 Server series |
| 型號 | |
| 品牌 | HP |
| 類型 | PC服務器 |
| CPU信息 | 處理器數量 4 |
| CPU類型 | AMD 皓龍TM 處理器8400系列 |
| CPU插槽數 | 4 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 4U |
| 硬盤信息 | 存儲類型 熱插拔2.5英寸SATA；熱插拔2.5英寸SAS |
| 最大硬盤數量 | 8 |
| 內存提示 | 內存類型 PC2-6400寄存式DDR2內存 |
| 支持內存容量范圍 | 最大內存 256 GB |
| 內存插槽數量 | 32 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 熱插拔冗余電源。 |
| 單機電源數量 | 2 |
| 介質托架 | 2 個可拆卸介質托架 |
| 適配器插槽 | 擴展槽總計9個（其中3個PCI-Express x8，4個PCI-Express x4，2個PCI-X） |
| 端口 | 網絡：兩個嵌入式多功能多功能NC371i千兆網絡適配器，帶TCP/IP卸載引擎；遠程管理：Integrated Lights-Out 2 (iLO 2) |
| 發布日期 | |
| 下架日期 | 2011/4/5 |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server; Microsoft Windows Server Hyper-V; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Solaris; Vmware; HP Citrix Essentials for XenServer. |
| 產品尺寸 | (高x 寬x 深) 6.94 x 19 x 26.5英寸(17.6 x 48.3 x 67.3厘米) |
| 產品重量 | 最大43kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 539847-B21 | HP DL585 G5/G6 AMD Opteron™ 8439SE (2.80GHz/6-core/6MB/105W) 2-Processor Kit | |
| 539847-L21 | AMD Opteron™ 8439SE 2.80GHz Six Core 105 Watts DL585 G6 Factory Integrated Processor Option Kit | |
| 539848-B21 | HP DL585 G5/G6 AMD Opteron™ 8431 (2.40GHz/6-core/6MB/75W) 2-Processor Kit | |
| 539848-L21 | AMD Opteron™ 8431 2.40GHz Six Core 75 Watts DL585 G6 Factory Integrated Processor Option Kit | |
| 539849-B21 | HP DL585 G5/G6 AMD Opteron™ 8425HE (2.10GHz/6-core/6MB/55W) 2-Processor Kit | |
| 539849-L21 | AMD Opteron™ 8425HE 2.10GHz Six Core 55 Watts DL585 G6 Factory Integrated Processor Option Kit | |
| 572373-B21 | HP DL585 G5/G6 AMD Opteron™ 8435 (2.60GHz/6-core/6MB/75W) 2-Processor Kit | |
| 572373-L21 | HP DL585 G6 AMD Opteron™ 8435 (2.60GHz/6-core/6MB/75W) FIO Processor Option Kit | |
| 內存 | ||
| 408855-B21 | 16 GB REG PC2-5300 2 x 8 GB Kit | |
| 495605-B21 | 64 GB REG PC2-5300 8 x 8 GB Kit | |
| 497763-B21 | 2 GB REG PC2-6400 2 x 1 GB Kit | |
| 497765-B21 | 4 GB REG PC2-6400 2 x 2 GB Kit | |
| 497767-B21 | 8 GB REG PC2-6400 2 x 4 GB Kit | |
| 534562-B21 | HP 1GB Flash Backed Cache | |
| 534916-B21 | HP 512MB Flash Backed Write Cache | |
| 硬盤 | ||
| 458924-B21 | HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 460355-B21 | HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1 year Warranty Hard Drive | |
| 507125-B21 | HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 year Warranty Hard Drive | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 512545-B21 | HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 530888-B21 | HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 572071-B21 | HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 572073-B21 | HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive | |
| 581284-B21 | HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 581286-B21 | HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 605835-B21 | HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | |
| 625609-B21 | HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive | |
| SCSI卡 | ||
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 網卡 | ||
| 435508-B21 | HP NC364T PCI Express Quad Port Gigabit Server Adapter | |
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | |
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter | |
| 538696-B21 | HP NC375T PCI Express Quad Port Gigabit Server Adapter | |
| 581201-B21 | HP NC550SFP Dual Port 10GbE Server Adapter | |
| 593717-B21 | HP NC523SFP 10Gb 2-port Server Adapter | |
| 適配卡 | ||
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 483513-B21 | HP IB 4X DDR PCI-e Dual Port 0 Memory HCA | |
| 572531-B21 | HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 572532-B21 | HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller | |
| 578229-B21 | HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 578230-B21 | HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller | |
| 614988-B21 | HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | |
| AW520A | HP StorageWorks CN1000E Dual Port Converged Network Adapter | |
| BS668A | HP CN1000Q Dual Port Converged Network Adapter | |
| 光纖卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| 電源 | ||
| 348114-001 | 910W (low line), 1300W (high line) Hot Plug Redundant Power Supply | |
| 348114-B21 | 910W (low line), 1300W (high line) Hot Plug Redundant Power Supply | |
| AF453A | HP R/T3000 UPS, High voltage, NA/JPN | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| 光驅 | ||
| 264007-B21 | Slimline DVD-ROM Drive (8X/24X) Option Kit | |
| 331903-B21 | Slimline CD-RW/DVD-ROM Combo Option Kit | |
| 383975-B21 | HP DVD+R/RW 8X Slim | |
| 磁帶機 | ||
| BL536A | HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | |
| BL537A | HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | |
| BL538A | HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | |
| BL539A | HP StorageWorks MSL8096 2 LTO-5 Ultrium 3000 SAS Tape Library | |
| EH899A | HP StorageWorks LTO-5 Ultrium 3280 Internal Tape Drive | |
| 導軌 | ||
| AF092A | HP 10642 G2 1200mm deep Shock Rack | |
| AF094A | HP 10647 G2 1200mm deep Shock Rack | |
| 線纜 | ||
| 313228-B21 | EC320-C19 to IEC320-C14 Jumper (10A, IEC, 12ft/3.7m) | |
| 389647-B21 | HP Internal SAS/SATA Multi-Lane A Cable | |
| 496016-B21 | HP Mini SAS to 8484 32in/35in Cable Assembly | |
| 591734-B21 | HP 8484 to Mini SAS 33in Cable Assembly | |
| 其它 | ||
| 252663-B24 | HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC) (WW) | |
| 252663-D72 | HP 24A High Voltage Modular Power Distribution Unit (North America, Japan) - 4.9 kVA Modular PDU, 24A | |
| 252663-D73 | HP Modular Power Distribution Units (Zero-U/1U Modular PDU) - 8.3 kVA Modular PDU, 40A (USA, Canada, Japan) | |
| 381513-B21 | HP Smart Array P800/512 BBWC Controller | |
| 418408-B21 | HP StorageWorks 60 Modular Smart Array | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 433257-B21 | HP Cluster Management Utility Media | |
| 436222-B21 | HP Insight Software Media Kit | |
| 452148-B22 | HP Insight Control suite, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 462830-B21 | HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | |
| 462832-B21 | HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | |
| 462834-B21 | HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | |
| 462860-B21 | HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller | |
| 462862-B21 | HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller | |
| 462864-B21 | HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller | |
| 487204-B21 | HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | |
| 491191-B21 | HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller | |
| 491193-B21 | HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller | |
| 491195-B21 | HP Smart Array P410/256 BBWC 2-ports Int PCIe x8 FIO SAS Controller | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516471-B21 | HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | |
| 574409-B21 | HP ProLiant DL585 G6 Configure-to-order Rack Server | |
| 582765-B21 | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | |
| 600278-B21 | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | |
| 600279-B21 | HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | |
| 600281-B21 | HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 600282-B21 | HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 608447-B21 | HP 2GB USB Flash Media Drive Key Kit | |
| 641027-B21 | HP 1.28TB Multi Level Cell PCIe IO Accelerator | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF426A | HP Rack Uninterruptible Power System R5500 (North America or Japan) | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF506A | HP Single Input 1 Phase 40A Monitored Power Distribution Unit (North America, Japan) | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AF618A | HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF619A | HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF620A | HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF621A | HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF622A | HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AG072A | HP 1U rackmount keyboard - includes three button touch pad, 4 scroll keys, and Windows shortcut keys - has PS2 and USB connections includes USB port on the front of the keyboard for USB pass through | |
| AJ934A | HP RDX500 Internal Removable Disk Backup System | |
| AJ940A | HP D2600 Disk Enclosure | |
| AJ941A | HP D2700 Disk Enclosure | |
| AP835B | HP DAT 320 USB in 1U Rack-mount Kit | |
| AZ870A | HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor | |
| AZ885A | HP TFT7600 G2 KVM Console Rackmount Keyboard TAA Monitor | |
| DC172B | HP USB 2-Button Optical scrolling mouse (Carbonite Black and Silver) - Has 1.8m (6.0 feet) long cable with USB connector | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| EH993B | HP D2D4112 Backup System | |
| EJ002B | HP D2D2504i Backup System | |
| QL803A | HP Cluster Management Utility Flexible License | |
| T9074BAE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | |
| TA850AAE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | |
| TC203A | HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | |
| TC208A | HP Insight Control for Linux Media Kit | |
| TC209A | HP Insight Control for Linux including 1yr 24x7 Support Single Server License | |
| TC213AAE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License | |
| TC278AAE | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | |
| TC293B | HP High Performance Computing Linux Value Pack 1 Processor Flexible License | |
| TC294A | HP High Performance Computing Linux Value Pack Media Kit | |
| U4607E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4608E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4609E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4617E | Hardware Installation, Electronic | |
| U4618E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4619E | Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic | |
| U4620E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U6316E | Onsite HW support 24x7, 4hr response and SuSE O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
