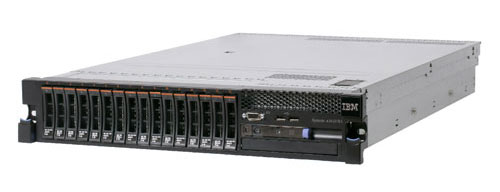

IBM X3650M4 (7915)
| 整機信息 | |
| 名稱 | IBM System x3650 M4 |
| 型號 | 7915 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | Up to two 8-core Intel Xeon E5-2600 series processors |
| CPU類型 | Intel Xeon E5-2600 系列 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 2U |
| 硬盤信息 | 最大硬盤容量：18TB |
| 最大硬盤數量 | 32 |
| 內存提示 | UDIMM/RDIMM/LRDIMM/HCDIMM |
| 支持內存容量范圍 | 最大768GB。 |
| 內存插槽數量 | 24 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 冗余電源： 550W ac, 750W ac, 900W ac, 或 750W dc （視具體型號而定）。 |
| 單機電源數量 | 2 |
| 介質托架 | Optional DVD and tape drive bay |
| 適配器插槽 | 4 - 6 PCIe ports or 4 PCI-X (CTO) or 2 double-width PCIe (for GPU by special bid) |
| 端口 | |
| 發布日期 | |
| 下架日期 | |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
| 產品尺寸 | |
| 產品重量 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| A1KJ | 81Y6794 | Intel Xeon Processor E5-2603 4C 1.8GHz 10MB Cache 1066MHz 80W |
| A1KL | 81Y6796 | Intel Xeon Processor E5-2609 4C 2.4GHz 10MB Cache 1066MHz 80W |
| A1KM | 81Y6797 | Intel Xeon Processor E5-2620 6C 2.0GHz 15MB Cache 1333MHz 95W |
| A1KN | 81Y6798 | Intel Xeon Processor E5-2630 6C 2.3GHz 15MB Cache 1333MHz 95W |
| A1KP | 81Y6799 | Intel Xeon Processor E5-2640 6C 2.5GHz 15MB Cache 1333MHz 95W |
| A1KQ | 81Y6800 | Intel Xeon Processor E5-2650 8C 2.0GHz 20MB Cache 1600MHz 95W |
| A1KR | 81Y6801 | Intel Xeon Processor E5-2660 8C 2.2GHz 20MB Cache 1600MHz 95W |
| A1KS | 81Y6802 | Intel Xeon Processor E5-2680 8C 2.7GHz 20MB Cache 1600MHz 130W |
| A1KT | 81Y6804 | Intel Xeon Processor E5-2667 6C 2.9GHz 15MB Cache 1600MHz 130W |
| A1KU | 81Y6807 | Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB Cache 1600MHz 70W |
| A1KV | 81Y6810 | Addl Intel Xeon Processor E5-2603 4C 1.8GHz 10MB 80W W/Fan |
| A1KX | 81Y6812 | Addl Intel Xeon Processor E5-2609 4C 2.4GHz 10MB 80W W/Fan |
| A1KY | 81Y6813 | Addl Intel Xeon Processor E5-2620 6C 2.0GHz 15MB 95W W/Fan |
| A1KZ | 81Y6814 | Addl Intel Xeon Processor E5-2630 6C 2.3GHz 15MB 95W W/Fan |
| A1L0 | 81Y6815 | Addl Intel Xeon Processor E5-2640 6C 2.5GHz 15MB 95W W/Fan |
| A1L1 | 81Y6819 | Addl Intel Xeon Processor E5-2650 8C 2.0GHz 20MB 95W W/Fan |
| A1L2 | 81Y6817 | Addl Intel Xeon Processor E5-2660 8C 2.2GHz 20MB 95W W/Fan |
| A1L3 | 81Y6818 | Addl Intel Xeon Processor E5-2680 8C 2.7GHz 20MB 130W W/Fan |
| A1L4 | 81Y6820 | Addl Intel Xeon Processor E5-2667 6C 2.9GHz 15MB 130W W/Fan |
| A1L5 | 81Y6823 | Addl Intel Xeon Processor E5-2650L 8C 1.8GHz 20MB 70W W/Fan |
| A2AV | 94Y6593 | Intel Xeon Processor E5-2670 8C 2.6GHz 20MB Cache 1600MHz 115W |
| A2AW | 94Y6594 | Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB Cache 1333MHz 60W |
| A2AX | 94Y6595 | Intel Xeon Processor E5-2643 4C 3.3GHz 10MB Cache 1600MHz 130W |
| A2AY | 94Y6596 | Addl Intel Xeon Processor E5-2670 8C 2.6GHz 20MB 115W W/Fan |
| A2AZ | 94Y6597 | Addl Intel Xeon Processor E5-2630L 6C 2.0GHz 15MB 60W W/Fan |
| A2B0 | 94Y6598 | Addl Intel Xeon Processor E5-2643 4C 3.3GHz 10MB 130W W/Fan |
| A2GU | 94Y6678 | Intel Xeon Processor E5-2665 8C 2.4GHz 20MB Cache 1600MHz 115W |
| A2GV | 94Y6681 | Addl Intel Xeon Processor E5-2665 8C 2.4GHz 20MB 115W W/Fan |
| A2QL | 94Y6679 | Addl Intel Xeon Processor E5-2690 8C 2.9GHz 20MB 135W W/Fan |
| A2QM | 94Y6680 | Addl Intel Xeon Processor E5-2637 2C 3.0GHz 5MB 80W W/Fan |
| A2VN | 94Y6676 | Intel Xeon Processor E5-2690 8C 2.9GHz 20MB 1600MHz 135W |
| A2VP | 94Y6677 | Intel Xeon Processor E5-2637 2C 3.0GHz 5MB 1600MHz 80W |
| 內存 | ||
| 8648 |
49Y1386 49Y1404 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP UDIMM |
| 8923 |
49Y1379 49Y1397 |
8GB (1x8GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8940 |
49Y1387 49Y1405 |
2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8941 |
49Y1388 49Y1406 |
4GB (1x4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 8942 |
49Y1389 49Y1407 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A14E |
49Y1381 49Y1399 |
8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1J3 |
81Y4484 81Y4486 |
ServeRAID M5100 Series 512MB Cache/RAID 5 Upgrade for IBM System x |
| A1J4 |
81Y4487 90Y4301 |
ServeRAID M5100 Series 512MB Flash/RAID 5 Upgrade for IBM System x |
| A1QT |
49Y1562 49Y1563 |
16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A1WY |
81Y4559 90Y4302 |
ServeRAID M5100 Series 1GB Flash/RAID 5 Upgrade for IBM System x |
| A28Z |
49Y1558 49Y1559 |
4GB (1x4GB, 1Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM |
| A292 |
90Y3108 90Y3109 |
8GB (1x8GB, 2Rx4, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz LP RDIMM |
| A2R1 | 00D4963 | 16GB (1x16GB, 1.5V)PC3-10600 CL9 ECC DDR3 1333MHz LP HyperCloud DIMM |
| 硬盤 | ||
| 3745 |
43W7715 43W7714 |
IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD |
| 5405 |
42D0749 42D0747 |
IBM 160GB 7200 SATA 2.5" SFF Slim-HS HDD |
| 5407 |
42D0752 42D075342D0754 |
IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD |
| 5412 |
44W2296 44W2294 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5413 |
44W2266 44W2264 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5522 |
42D0674 42D0672 |
IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5537 |
42D0634 42D0632 42D0633 |
IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| A1NX |
81Y9724 81Y9722 |
IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1NZ |
81Y9728 81Y9726 |
IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A22P |
81Y9792 81Y9790 |
IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| A22S |
81Y9800 81Y9798 |
IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD |
| A22V |
81Y9816 81Y9814 |
IBM 3TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD |
| A22X |
81Y9808 81Y9806 |
IBM 1TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD |
| A282 |
81Y9652 81Y9650 |
IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD |
| A2XB |
90Y8928 90Y8926 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XC |
90Y8879 90Y8877 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XD |
90Y8874 90Y8872 |
IBM 600GB 10K 6Gbps SAS 2.5" SFF G2HS HDD |
| A2XE |
90Y8955 90Y8953 |
IBM 500GB 7.2K 6Gbps NL SAS 2.5" SFF G2HS HDD |
| RAID卡 | ||
| 93 |
46M0850 46M0829 |
ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 95 |
46M0862 46M0831 |
ServeRAID M1015 SAS/SATA Controller |
| 3559 |
43W4340 44E8825 43W4339 |
ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 |
43W4298 43W4296 |
ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3577 |
44E8692 44E8689 |
ServeRAID-BR10i SAS/SATA Controller |
| 3877 |
46M0922 46M0916 46M0918 |
ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 9742 |
49Y4738 49Y4731 |
ServeRAID-BR10il SAS/SATA Controller v2 - PCI-E x4 |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 3585 |
44X0137 46M1076 |
Dual port 1Gb Ethernet Daughter Card n/a n/a Dedicated |
| 5451 |
42C1792 42C1793 42C1790 |
NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5763 | 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| A18Y |
49Y7913 49Y7910 |
Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x |
| A22J | 90Y6268 | Emulex Dual Port 10GbE SFP+ Embedded VFA III for IBM System x |
| A2F6 | 95Y3450 | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA |
| A2F7 | 95Y3454 | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA |
| A2F8 | 95Y3458 | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter |
| A2FH | 90Y3841 | Mellanox QSA Adapter (QSFP to SFP+) |
| 適配卡 | ||
| 46M1070 | IBM System x3550 M2 PCI-Express (1x16) | |
| 46M1071 | IBM System x3550 M2 PCI-X Riser Card | |
| 69 |
49Y4217 49Y4216 42C1819 |
Brocade 10Gb SFP+ SR Optical Transceiver |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 |
39Y6148 39Y6149 39Y6146 |
QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 |
42C1772 42C1773 42C1770 |
QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 5721 | 49Y8577 | IBM 10GbE SW SFP+ Transceiver |
| 5982 |
68Y7355 46M0907 |
IBM 6Gb SAS HBA |
| A1DR | 90Y3505 | IBM QSFP+ SR Transceiver |
| A1JQ |
81Y6893 69Y5322 |
x3650 M4 PCIe Gen-III Riser Card 2 (1 x16 FH) |
| A1JS |
81Y6895 81Y6843 |
x3650 M4 PCIX Riser Card 2 (1 x16 FH/HL) |
| A1JU |
81Y6892 69Y5321 |
x3650 M4 PCIe Gen-III Riser Card 2 (1 x8 FH/ |
| A2TE | 90Y5180 | Emulex Embedded VFA III FCoE/iSCSI |
| A2U1 |
95Y3763 95Y3762 |
Emulex Dual Port 10GbE SFP+ VFA III for IBM System x |
| 光纖卡 | ||
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 40K9620 | IBM UPS3000 Ebm | |
| A1H5 | 81Y6562 | IBM System x 750W High Efficiency Platinum AC Power Supply |
| A1H6 | 81Y6563 | IBM System x 550W High Efficiency Platinum AC Power Supply |
| A2EB | 94Y6666 | IBM System x 900W High Efficiency Platinum AC Power Supply |
| 電池 | ||
| 5744 |
46M0857 46M0917 |
ServeRAID M5000 Series Battery Assembly |
| 5864 |
44E8840 44E8826 |
ServeRAID-MR10i Li-Ion Battery |
| A22E |
81Y4508 81Y4588 |
ServeRAID M5100 Series Battery Kit for IBM System x |
| 光驅 | ||
| 4161 |
44W3251 46M0901 |
IBM UltraSlim Enhanced SATA DVD-ROM |
| 4163 |
44W3253 46M0902 |
IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁帶機 | ||
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 磁帶 | ||
| 5708 | 46C5376 | IBM RDX 320GB Cartridge |
| 5709 | 46C5378 | IBM RDX 500GB Cartridge |
| 線纜 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| A22N | 90Y6536 | x3650 M4 ODD Cable |
| A2F9 | 90Y3809 | 1m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FA | 90Y3813 | 3m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FB | 90Y3817 | 5m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FC | 90Y3821 | 10m Mellanox QSFP Optical InfiniBand Cable |
| A2FD | 90Y3825 | 15m Mellanox QSFP Optical InfiniBand Cable |
| A2FE | 90Y3829 | 20m Mellanox QSFP Optical InfiniBand Cable |
| A2FG | 90Y3837 | 30m Mellanox QSFP Optical InfiniBand Cable |
| A2FS | 95Y3462 | 3m Mellanox QSFP Optical InfiniBand Cable |
| A2FT | 95Y3466 | 5m Mellanox QSFP Optical InfiniBand Cable |
| 其它 | ||
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| 17237RX | IBM 19" Fixed Shelf Option | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17354GX | Global 4x16 Console Mngr (GCM4) | |
| 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| 1746A2E | IBM System Storage EXP3512 Express | |
| 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| 39M2818 | IBM Dpi C19 PDU+ | |
| 39M2819 | IBM DPI C19 3 phase PDU+ | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 93061RX | NetBAY11 Standard Rack | |
| 64 |
49Y4219 49Y4218 |
QLogic 10Gb SFP+ SR Optical Transceiver |
| 1776 |
46M4989 41Y8278 |
IBM USB Memory Key for VMware ESXi 47 |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 5080 |
43V6923 46C7526 |
IBM Virtual Media Key |
| 5106 |
46M0932 46M0930 |
ServeRAID M5000 Series Advance Feature Key |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 5710 | 46C5369 | IBM RDX Internal USB Dock |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
| 9749 |
46M0865 46M0832 |
ServeRAID M1000 Series Advance Feature |
| A1JY | 81Y6836 | x3650 M4 Plus 8x 2.5" HS HDD Assembly Kit |
| A1L6 | 81Y6837 | x3650 M4 Tape Enablement Kit |
| A1ML | 80Y9626 | IBM Integrated Management Module |
| A1X2 |
81Y4544 81Y4545 |
ServeRAID M5100 Series Zero Cache/RAID 5 Upgrade for IBM System x |
| A1X3 |
81Y4546 81Y4547 |
ServeRAID M5100 Series RAID 6 Upgrade for IBM System x |
| A228 | 90Y6458 | IBM System x Gen-III Slides Kit |
| A229 | 90Y6461 | IBM System x Gen-III CMA |
| A22A | 90Y6464 | IBM System x Gen-III Large Capacity CMA |
| A22B | 90Y6465 | IBM System x Universal Slides Kit |
| A2BB | 90Y5044 | x3650 M4 Remote Supercap and Battery Tray |
| A2G0 | 41Y8306 | IBM Blank USB Memory Key for VMWare ESXi |
| A2VC |
94Y9770 41Y8300 |
IBM USB Memory Key for VMWare ESXi 5.0 |
