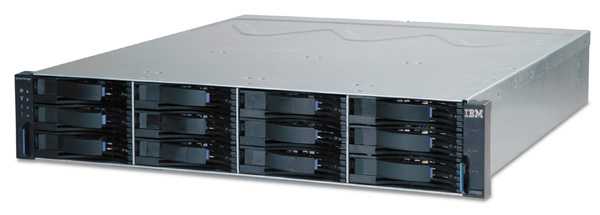

IBM DS3400
| 名稱 | IBM System Storage DS3400 |
| 型號 | 1726-42X |
| 機架空間 | 2U |
| 控制器信息 | 雙控制器 |
| 整機控制器緩存 | 512 MB battery-backed cache with 1 GB upgrade option |
| 控制器是否有電池 | 是 |
| 接口 | Two host ports per controller, Fibre Channel (FC) 4 Gbps auto-sensing 1 Gbps/2 Gbps |
| 硬盤插槽數量 | 單柜 12 個硬盤，使用三個EXP3000擴展柜可達到 48 個SAS或SATA驅動器。 |
| 支持的硬盤 | |
| 支持Raid類型 | RAID 0, -1, -3, -5, -6, -10 |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | 4, 8, 16, 32 |
| 可用性 | |
| SAN支持 | IBM supported FC switches |
| 其他特性 | Dual-redundant, hot-swappable, 19 |
| 產品尺寸 | Height: 8.7 cm (3.4 in.),Depth: 55.0 cm (21.6 in.),Width: 44.7 cm (17.6 in.) |
| 產品重量 | approximately 17.2 kg (38.0 lb) for a standard unit; when fully con?gured, 29.2 kg (64.5 lb) |
| 保修 | Three-year parts and labor warranty |
| 管理軟件 | IBM System Storage DS3000 Storage Manager |
| 存儲擴展柜 | EXP3000 |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 緩存 | ||
| 39R6518 | DIMM, 1 GB cache memory | |
| 4838 | 39R6517 | DS3000 1GB Cache Memory Upgrade, One per controller. Must be ordered in pairs for dual controller systems. |
| 硬盤 | ||
|
39R7340 40K1039 |
73GB 10K Hot Swap SAS | |
|
39R7342 40K1040 |
146GB 10K Hot Swap SAS | |
|
39R7344 40K1041 |
300GB 10K Hot Swap SAS | |
| 5161 | 40K1043 | 73GB 15K Hot Swap SAS |
| 5162 | 40K1044 | 146GB 15K Hot Swap SAS |
| 5311 |
44W2234 44W2235 44W2236 |
IBM 300GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5312 | 44W2239 | IBM 450GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5313 | 44W2244 | IBM 600GB 15K 6Gbps SAS 3.5" Hot-Swap HDD |
| 5516 |
39M4558 39M4561 |
IBM 500GB Dual Port Hot-Swap SATA |
| 5532 |
43X0802 43X0805 |
300GB 15K SAS HS |
| 5540 |
43W7580 43W7583 |
750GB Dual Port SATA Hot Swap Option |
| 5561 |
43W7630 43W7633 42C0498 |
1000 GB Dual Port Hot Swap SATA |
| 5586 | 42D0519 | IBM 450GB 15K SAS 3.5" HS HDD |
| 電源 | ||
| 42C2140 | Power supply, ac | |
| 電池 | ||
|
39R6520 42C2193 |
Battery | |
| 導軌 | ||
| 39R6550 | 2U rail kit | |
| 控制器 | ||
| 39R6502 | For a dual-controller DS3400 storage subsystem, Fibre Channel RAID controller replacement with 512 MB DIMM | |
| 44W2171 | For a single-controller DS3400 storage subsystem, Fibre Channel RAID controller replacement with 512 MB DIMM | |
| 4837 | 39R6513 | DS3400 FC Controller Upgrade |
| 線纜 | ||
| 13N1932 | Service cable | |
| 39M5377 | Power cord, rack jumper, 2.8-meter | |
| 39R6530 | IBM 1-meter mini-SAS cable | |
| 39R6532 | IBM 3-meter mini-SAS cable | |
| 其它 | ||
| 39M4375 | Filler panel, hard disk drive | |
| 39R6545 | Chassis and midplane assembly | |
| 39R6546 | Bezel kit - chassis | |
| 39R6548 | Filler panel, controller | |
| 39R6551 | Miscellaneous hardware kit |
