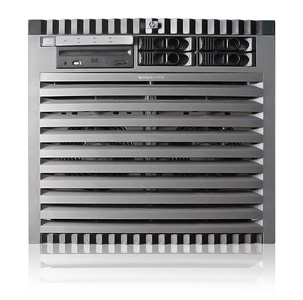

HP RP7440
| 整機信息 | |
| 機架類型 | 塔式 |
| 機架空間 | 10U |
| CPU信息 | 1-8 個1.068GHz雙核處理器 |
| CPU類型 | PA-8900 |
| CPU插槽數 | 8（2個CPU板，一個最多上4個CPU） |
| 硬盤信息 | 提供36GB、73GB、146GB 和300GB 驅動器；4 個熱插拔Ultra320 SCSI；最大內部存儲1.2TB |
| 最大硬盤數量 | 4 |
| 內存類型 | DDR ECC SDRAM DIMMs |
| 支持內存容量范圍 | 2GB-128GB |
| 內存插槽數量 | 32(每個CPU板16個內存插槽) |
| 電源描述 | 2個熱插拔PCI電源，2個熱插拔系統電源 |
| 單機電源數量 | 2+2 |
| 介質托架 | 1 個用于DVD-ROM 或DVD+RW 光驅的開放托架 |
| 適配器插槽 | 15 個熱插拔 PCI-X I/O 板（8 PCI-X 266 slots, 7 PCI-X 133 slots） |
| 端口 | 1 RS-232 serial port for local console and 10/100Base-T management LAN |
| IO適配器 | |
| 操作系統 | HP-UX 11i v1；HP-UX 11i v2。 |
| 產品尺寸 | 長: 812mm (35 in.), 寬: 482mm (19 in.), 高: 445mm (17.5 in.)/10 EIA units. |
| 產品重量 | 90kg (200 lb) |
| 配件信息 | |
| PN號 | 描述 |
| CPU | |
|
AB313-69012 AB313-67012 |
Processor kit - Cell with 2x Dual-Core PA-8900 CPU modules, 1.068GHz, 3Mb cache |
|
AD110-69001 AD110-67001 |
Processor kit - CPU Module, Dual-Core, PA-8900, 1.068GHz, 3 MB cache, 64 MB L2 cache - Includes two aligment rods |
| 系統板 | |
|
AB312-69301 AB312-67001 |
Printed Circuit Assembly (PCA) - System Backplane |
| AB315-60301 | Printed Circuit Assembly (PCA) - Management Processor (MP)/Small Computer Systems Interface (SCSI) Core IO |
| 內存 | |
| A9843-69001 | 1.0GB DIMM memory module - Double Data Rate 2 (DDR2) |
| A9846-69001 | 2.0GB DIMM memory module - MAMM4 2.0GB, DDR-2 |
|
A9849A A9849-69001 |
4.0GB DIMM memory module - MAMM, Double Data Rate 2 (DDR2) |
| 硬盤 | |
|
AB420-69001 AB420-67001 |
36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
|
AB421-69001 AB421-67001 |
73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
|
AB422-69001 AB422-67001 |
146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
|
AB423-69001 AB423-67001 |
300GB Small Computer Systems Interface (SCSI) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| 硬盤背板 | |
| AB312-60203 | Printed Circuit Assembly (PCA) - Mass Storage Backplane |
| 網卡 | |
|
AB290-69002 AB290-67002 |
Dual port 10Base-T/100Base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
| 光纖卡 | |
| A9784-60002 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo |
| A9784-69003 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| A9784A | 1000Base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors |
| A9784AX | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| 電源 | |
| 0950-4637 | Power Module 48VDC - PCIX N+1 |
|
0957-2183 A6093-69021 |
Bulk power supply - Redundant hot-swap power supply - (Celestica) |
| 穩壓模塊 | |
| 0950-4741 | Voltage regulator module (VRM) - DC to DC, programmable, 48 Volt DC (VDC) |
| 光驅 | |
|
AB351-67002 AB351-2100A |
Server optical drive - Integrated Drive Electronics (IDE) DVD +RW |
| AD013-2101A | Server optical drive (Black) - DVD+R/RW, slimline form factor, includes 2 A-cards |
| AD143-2100A | Server optical drive (Black) - DVD+R/RW, slimline form factor, 8X speed, S5, carbonite |
| 磁帶機 | |
| 393484-001 | HP StorageWorks DAT 72GB Ultra160 LVD SCSI internal tape drive |
| 風扇 | |
| A6093-00276 | Fan - Cell Controller, DNA Turbo Cooler |
| A6752-04071 | Smart fan assembly - For hot-swap PCI card cage (PCI C/C) |
|
A6752-67129 A6752-67046 A6752-67029 |
Smart fan - Front/rear hot-swap, assembly |
| AB388-00005 | TurboCooler fan - 66mm, Central Processing Unit (CPU) |
| 導軌 | |
| A6752-67011 | CD/DVD-ROM drive mounting rail |
| 線纜 | |
| 8120-6895 | Power cord (Black) - 15 AWG, 4.5m (14.8ft) long - Has a stripped end for power input and straight C19 (F) receptacle for power output |
| 8120-8494 | Power cord (Black) - 15 AWG, 4.5m (14.8ft) long - Has NEMA L6-20P (M) plug for power input and (F) C19 receptacle for power output (for 240VAC in North America) - (E7803A) |
| 8121-0070 | Power cord (Black) - 15 AWG, three conductor, 4.5m (14.8ft) long - Has straight (F) C19 receptacle (For 220V in China) |
| 8121-0802 | Jumper power Cord (Black) - C20 (M) connector to C19 (F) connector - Three conductor, 2.5m (8.2ft) long (Option 926) |
| 8121-0806 | Power cord - Jumper cable, 4.5m (14.7ft) long, C19/C20 |
| A6093-63044 | Cable - Intrusion Switch |
| A6752-63021 | Cable - Hot-swap System PCI Fan Internal Power Cable |
| A6752-63024 | Power cord - Main power harness |
| A6752-63025 | Power cable - For front and rear hot-swap system fans, system fan external cable |
| A7027-63003 | Cable - Internal smart array RAID cable |
| AB312-2002A | Cable - Mass Storage Power |
| AB312-2003C | Cable - Small Computer Systems Interface (SCSI) Bundle |
| AB312-2010A | Cable - DVD power cable, short |
| 其它 | |
| 5040-6317 | Chassis intrusion switch |
| A5201-68003 | DIMM module installer tool |
| A5201-68004 | Anti-static mat, 24in x 36in with grounding strap |
| A5201-68017 | DIMM module removal tool |
| A6093-67114 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
| A6912-00014 | DVD-ROM drive slot filler panel (Carbon) |
| A6913-67005 | Processor cell board air flow baffle |
| AB297-63002 | Clock oscillator kit |
|
AB297-69101 AB297-67001 |
PCI-X Backplane - Card Cage Assembly |
| AB312-2102A | Hardware kit - Front panel display bezel mitt |
| AB312-2108A | Hardware - Nameplate for RX7640 |
| AB312-60102 | Printed Circuit Assembly (PCA) - Front Panel (Display) |
| C2786-40002 | Attachment snap |
