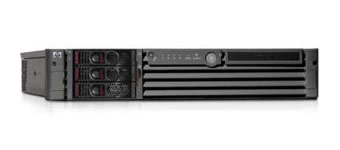

HP RX2600
| 技術規格 |
| 性能/可擴展性/靈活性 |
| 1到2個Intel Itanium 2處理器 |
| 時鐘頻率為1.5 GHz、1.4 GHz、1.3 GHz和1.0 GHz |
| 系統總線帶寬為6.4GB/秒 |
| 高速緩存(芯片上) |
| 一級緩存32 KB |
| 二級緩存256 KB |
| 三級緩存 |
| 6 MB (1.5GHz) |
| 3 MB (1.3GHz) |
| 1.5 MB (1.4GHz和1.0 GHz) |
| 主內存核心I/O 互連 |
| 總線帶寬8.5GB/秒 |
| RAM類型PC2100 ECC Registered |
| DDR266A SDRAM |
| 容量最大24GB |
| 內存插槽12個DIMM |
| 內存延遲78納秒 |
| 內置存儲設備更佳性能 |
| 內置托架3個熱插拔SCSI磁盤托架 |
| 磁盤產品36GB (15K rpm) |
| 73GB (15K rpm) |
| 146GB (10K rpm) |
| 最大存儲容量438GB |
| 可拆卸介質 |
| 1個開放式托架，用于DVD-ROM或DVD/CD+RW |
| 高性能技術計算功能 |
| 用于分布式工作負載管理的hptc/ClusterPack |
| HP-UX技術計算操作環境(包括HP MLIB和HP MPI) |
| MSC.Linux－用于在CAE環境中部署的計算集群的Linux發行版本 |
| 操作系統 |
| HP-UX 11i v 2 |
| 基于Itanium2系統的Microsoft® Windows® Server 2003企業版 |
| 用于Intel Itanium處理器的Red Hat Linux Advanced Server |
| 用于Intel Itanium 2處理器的SUSE Enterprise Linux 8 |
| 擴展插槽 |
| PCI-X插槽 4個全長64位/133 MHz PCI-X |
| I/O帶寬 4.0GB/秒 |
| 核心I/O 互連 |
| 10/100/1000BT LAN |
| 10/100BT LAN |
| 10/100BT管理LAN |
| Ultra320 SCSI |
| RS-232串行端口 |
| VGA |
| USB |
| 更佳性能 |
| 每個處理器 |
| 6 GFLOPS(1.5 GHz) |
| 5.2 GFLOPS(1.3 GHz) |
| 高可用性 |
| • N+1冗余熱交換電源(N=2) |
| • N+1風扇 |
| • ECC內存與高速緩存 |
| • 內存芯片備用 |
| • 自動取消內存與處理器配置 |
| • 監控系統狀態的服務處理器 |
| 可選的高可用性與業務持續性解決方案 |
| • 用于HP-UX 的HP Serviceguard |
| • 用于HP-UX的HP Serviceguard Extension for RAC |
| • 用于HP-UX的HP Serviceguard Extension for SAP |
| • 用于HP-UX clusters的HP Serviceguard Manager |
| • 用于HP-UX的HP Event Monitoring Service HA Monitor |
| • 用于HP-UX 的High Availability工具包 |
| • HP Mirrordisk/UX |
| • 用于HP-UX的Extended Campus Cluster |
| • 用于Windows Server 2003 的Microsoft Cluster Service, 企業版 |
| • 用于Windows Cluster Service的HP Cluster Verification工具 |
| 可管理性 |
| 多操作系統管理工具 |
| • HP Systems Insight Manager為所有的HP服務器提供集中的故障、配置、性能及清單管理它取代了Servicecontrol Manager 和Insight Manager 7 |
| • 管理處理器，用于全面的遠程服務器管理 |
| Linux管理工具 |
| • 用于Linux的HP Enablement套件 |
| HP-UX管理工具 |
| • 用于安裝和部署HP-UX操作系統的HP Ignite-UX |
| • 用于HP-UX軟件和補丁管理的HP Software Distributor-UX |
| • 用于HP-UX系統管理的HP System Administration Manager |
| • 惠普事件監測服務 |
| • HP-UX內核配置，用于輕松、動態的內核參數變更 |
| • Process Resource Manager, 用于HP-UX 資源管理(可選) |
| • HP-UX Workload Manager用于基于優先的服務等級目標的工作負荷管理(可選) |
| 環境規格 |
| 高度 |
| 工作最高3048米(10,000英尺) |
| 不工作最高4572米(15,000英尺) |
| 溫度(攝氏與華氏) |
| 工作 +5°到+35°C(+41°到+95°F) |
| 不工作 -40°到+70°C(-40°到+158°F) |
| 濕度 |
| 工作15%到80%, 相對濕度 |
| 外形尺寸(機架外形尺寸) |
| 高度495毫米/19.5英寸 |
| 寬度297毫米/11.7英寸 |
| 深度672毫米/26.5英寸 |
| 外形尺寸(基座外形尺寸) |
| 高度86毫米/3.4英寸/2U EIA |
| 寬度482毫米/19英寸 |
| 深度680毫米/26.8英寸 |
| 凈重 |
| 最大配置25.4千克/56磅 |
| 功率要求 |
| 輸入電流100–127V~8.0A 200–240V~3.9A (自動校正) |
| 線路頻率50-60 Hz |
| 最大輸入功率714W |
| 電源 |
| 最大輸出功率650W |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| A7231-69130 | Intel Itanium 2 processor - 1.0GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache) - Mounts on the system processor board | |
| A7231-69139 | Intel Itanium 2 processor - 900MHz (McKinley, 400MHz front side bus, 1.5MB Level-3 cache) | |
| A7845A | Intel Itanium 2 processor upgrade - Includes one 900MHz (200MHz front side bus, 1.5MB cache) processor | |
| A7848A | Intel Itanium 2 processor upgrade - Includes one 1.0GHz (200MHz front side bus, 3MB cache) | |
| 系統板 | ||
| A6875A | Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors - NOT supported in tower configurations | |
| A7231-69512 | System processor board (Does NOT include the processor or processor power module) | |
| AB587-60002 | Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors | |
| AB587-60004 | PCI backplane/riser board - Has four PCI slots | |
| 內存 | ||
| A6967AX | 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module | |
| A7840A | 512MB DDR-SDRAM memory upgrade kit - Includes two 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules | |
| A7841A | 1.0GB DDR-SDRAM memory upgrade kit - Includes two 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules | |
| A7842A | 2.0GB DDR-SDRAM memory upgrade kit - Includes two 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules | |
| 硬盤 | ||
| A6980A | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector | |
| A6980AR | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector | |
| A6981A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile | |
| A6981AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile | |
| A6982A | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector | |
| A6982AR | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector | |
| A7835-69005 | 36GB hot-plug Ultra320 Wide SCSI Low Voltage Differential (LVD) hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7835A | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7835AR | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7836A | 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7836AR | 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7837A | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
| A7837AR | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector | |
|
AB420-69001 AB420-67001 |
36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high | |
| 硬盤背板 | ||
| AB587-60005 | SCSI backplane board - Has three connectors for hot-swap hard drives | |
| SCSI卡 | ||
| A5159-69001 | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system | |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system | |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system | |
| A6828AR | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system | |
|
A6829A A6829-60101 |
Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system | |
| A6829AR | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system | |
| 網卡 | ||
| 5185-8203 | FireWire (IEEE-1394A) adapter - 3-port | |
| A5506B | 100Base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100Base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al | |
| A6847A | 1000Base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system | |
| A8084A | FireWire (IEEE-1394A) adapter - 3-port | |
| A8685A | 1000Base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector - Requires one PCI slot - For HP-UX operating system | |
| AB545-60001 | 1000Base-TX LAN four port host adapter board - Supports all PCI bus configurations - Has four RJ-45 connectors - Requires one PCI slot - For HP-UX operating system | |
| B5509-66001 | 100Base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system | |
| B5509BA | 100Base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system | |
| P3492-63000 | 10/100Base-T PCI network interface card with IPSec (3DES) - For Windows and Linux based systems | |
| P3492A | 10/100Base-T IPSec (3DES) LAN host adapter board - With one RJ-45 connector - Reqires one PCI slot - For Windows and Linux operating systems | |
| 適配卡 | ||
| A7784A | Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot Includes the audio card, stereo headphones, and internal audio cable - For Windows or HP-UX operating systems - For HP-UX operating system | |
| AB620-60503 | Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot - For HP-UX operating system | |
| 顯卡 | ||
| A7226-69520 | ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot | |
| A7226A | ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot - For Windows and HP-UX | |
| A7806-69510 | NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG slot | |
| A7806A | NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG Slot - For Windows and Linux operating systems | |
| A8049-60520 | ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot | |
| A8049A | ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot | |
| A8064-69520 | NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG slot - For Windows and Linux operating systems | |
| A8064A | NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG Slot - For Windows and Linux operating systems | |
| 電源 | ||
| 0950-4530 | Processor power supply (or module) - DC to DC converter module with power supply cable (12V DC in, 1.5V DC at 100A nominal | |
| 0950-4621 | Hot-swap redundant power supply - 650W | |
| A6874A | HP Hot-Swap Redundant Power Supply (rx2600)- 650W | |
| 光驅 | ||
| A6985A | Slimline DVD-ROM drive (Gray) - 8X DVD-ROM read, 24X CD-ROM read | |
| A6986-69001 | IDE slim form CD-RW/DVD-ROM combination drive (Flint Gray) - 12X-max write, 8X-max rewrite, 24X-max read CD, 8X-max read DVD | |
| A6986A | Slimline DVD-ROM/CD-RW drive (Gray) - 12X CD-R write, 8X CD-RW re-write, 24X CD-ROM read, 8X DVD-ROM read | |
| A7231-69011 | 8x-max read DVD, 24x-max read CD-ROM IDE slim form factor DVD-ROM drive (Gray) | |
| A7231-69024 | Slimline DVD-ROM/CD-RW combination drive (Carbon Black) - 12X CD-R write, 8X CD-RW re-write, 24X read CD-ROM, 8X read DVD-ROM | |
| A7850A | IDE DVD-ROM drive - 8X-max read DVD, 24X-max read CD-ROM, slimline form factor - With Carbon Black faceplate | |
| A7851A | IDE CD-RW/DVD-ROM drive - 12X-max write, 8x-max re-write, 8X-max read DVD, 24X-max read CD-ROM, slimline form factor -With Carbon Black faceplate | |
|
A9919-67001 A7231-62012 |
Slimline DVD-ROM drive (Carbon Black) - 8X read DVD-ROM, 24X read CD-ROM | |
| 風扇 | ||
| A7231-04014 | Super 80mm tubeaxial fan | |
| A7231-04015 | Thin 80mm fan - For use in tower configuration | |
| A7231-04017 | Standard 80mm fan | |
| A7231-04034 | Main airflow guide (plastic) | |
| A7231-04058 | Super 80mm tubeaxial fan | |
| A7231-04059 | 80mm dual fan | |
| A7231-04060 | Thin 80mm fan | |
| 導軌 | ||
| A6939A | Field rack mount kit - For field integration into 19-inch wide cabinets at customer location - Includes rails and bezel | |
| 線纜 | ||
| 8120-1378 | Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) | |
| A6064-63001 | Converter dongle - Short cable with a (M) DVI-I connector and a (F) 15-pin VGA connector - For connecting a VGA monitor to a DVI-I port on the graphics card | |
|
A6144-63001 A6144-63007 A6144-63019 |
Management processor M-cable | |
| A7231-04018 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies | |
| A7231-63002 | Data cable - For IDE CD-ROM/DVD drive - Connects between the CD-ROM/DVD drive and the system processor board | |
| A7231-63026 | Data cable - For IDE CD-ROM/DVD drive | |
| A7231-63028 | Hard drive power cable | |
| A7231-63029 | Y-cable assembly for super-80mm fan - 6-wire (three per connector) fan cable | |
| A7231-63030 | Y-cable assembly for 80mm fan - 12-wire (three per connector) fan cable | |
| A7231-63032 | Flex cable - For the management processor card | |
| A7231-63038 | SCSI cable A-channel - Has one connector at each end | |
| A7231-63039 | SCSI cable B-channel - Has one connector at each end | |
| 機殼 | ||
| A7231-00072 | ECI cover plate - Gray metal plate approximately 1.0-inches wide by 6.75-inches long | |
| A7231-04026 | Deskside front bezel assembly (Flint Gray) | |
| A7231-04071 | Main cover (Carbon Black) - Metal cover with blue-colored release handle | |
| A7231-40021 | Deskside top cover | |
| 其它 | ||
| A6198-60003 | Hot-swap hard drive slot filler panel (Carbon Black) | |
| A6198-67002 | Filler panel - Used to cover an empty hard drive slot | |
| A6940A | Pedestal configuration kit - Includes pedestal, front bezel, top cover, side cover, and nameplate - For converting the rack mount server into a deskside pedestal configuration | |
| A7231-04004 | Fan cage assembly (metal) - Front half of the processor airflow system | |
| A7231-04025 | Right side bezel for rack configurations (Flint Gray) | |
| A7231-04030 | Left side bezel for rack configurations with latch (Flint Gray) | |
| A7231-04072 | PCI/AGP card cage - Includes the metal frame and cover (PC board NOT included) | |
| A7231-40003 | Rack nameplate (Quatrz Gray) | |
| A7231-40025 | Deskside nameplate (Flint Gray) | |
| A7231-40026 | Slimline optical drive bay filler panel (Gray plastic) | |
| A7231-67046 | 2.5mm hex tool - For removing or installing a replacement processor/heatsink assembly | |
| AB587-60006 | Status panel PC board - Includes the system status LED`s and power switch on a small PC board RoHS: Modified | |
