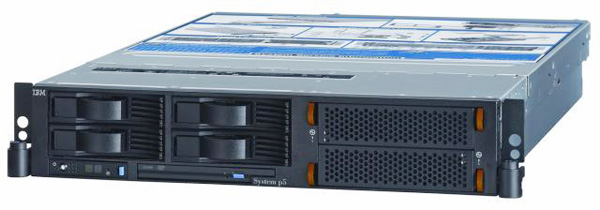

IBM P5 510 (9110-510)
| 安裝類型 | 機架式 |
| 高度 | 2U |
| CPU信息 |
1 路或 2 路1.65 GHz(或 1.5GHz 可選) POWER5 處理器，1.9 MB L2和 36 MB L3 高速緩存， CPU 集成在主板上，要跟主板一起更換 |
| CPU類型 | POWER5 |
| CPU插槽數 | 1 |
| CPU激活 | 需要VPD |
| 硬盤背板 | 只有1個，最多插4個硬盤 |
| 硬盤容量 | 最大1200G |
| 內存參數 | 266 MHz DDR1 ECC，插槽位在主板上 |
| 內存容量范圍 | 512MB-32GB |
| 內存插槽數量 | 8 |
| 內存是否需要激活 | 不需要激活 |
| 電源參數 | 100v 到 127v 或 200v 到 240v 交流 |
| 電源數量 | 2 |
| 介質 | DVD-ROM 或 DVD-RAM |
| 適配器插槽 | 3 個熱插拔 3.3v PCI-X（3 個 64 位 133MHz） |
| 端口 | 2 個以太網 10/100/1000 Mbps 端口、1 個外置 SCSI 端口、2 個串口、2 個 USB端口、2 個 HMC 端口、鍵盤和鼠標。 |
| I/O適配器 | 雙通道 Ultra320 SCSI 控制器（內置和外置端口；可選的 RAID 子卡） |
| I/O擴展 | IBM 2104 Expandable Storage Plus |
| 發布日期 | 2005/2/18 |
| 下架日期 | 2006/11/13 |
| 服務截止日期 | |
| 操作系統 | AIX 5L V5.2/5.3,SUSE LINUX Enterprise Server 9 或者 POWER™ （SLES 9）或更高版 本，Red Hat Enterprise LinuX AS 3 f或者 POWER Update 4（RHEL AS 3）或更高版本。 |
| 產品尺寸 | 機架擴展籠：高 3.5" x 寬 71.2" x 長 27.0"（89mm x 437mm x 686mm） |
| 產品重量 | 重 16.8 千克 （37 磅） |
| FC號 | PN號 | 描述 |
| CPU | ||
|
7612 262A |
03N4429 03N4043 03N6268 10N7335 |
2-way 1.5GHz POWER5 Processor Card 36MB L3 Cache |
|
7611 261F |
03N4831 03N6217 10N7292 80P6120 80P7145 |
2-way 1.65GHz POWER5 Processor Card 36MB L3 Cache |
|
7610 261E |
03N4851 03N6242 10N7313 80P6140 80P7167 |
1-way 1.65GHz POWER5 Processor Card 36MB L3 Cache |
|
7609 261D |
03N4861 03N6254 10N7324 80P6160 80P7190 |
1-way 1.5GHz POWER5 Processor Card No L3 Cache |
| 硬盤 | ||
| 3274 |
00P2672 00P3072 00P3811 00P3833 03N5260 03N6325 08K0283 26K5191 26K5291 26K5533 |
73.4GB 10K RPM U320 LVD 80-pin SCSI Disk Drive Carrier ST373307LC |
| 3275 |
00P2664 00P2665 00P3834 00P3835 03N5264 03N5265 03N6330 08K0273 26K5194 26K5294 26K5534 |
146.8GB 10K 80 Pin RPM U320 SCSI Disk Drive Carrier ST3146807LC |
| 32077 |
00P2692 00P2693 03N5275 03N6339 03N6340 07N6771 09P3631 26K5178 26K5278 26K5530 80P3159 |
36.4GB 15K 80 Pin U320 SCSI Disk Drive |
| 3279 |
03N5284 03N5285 03N5766 03N6349 03N6350 26K5182 26K5282 26K5532 26K5567 80P3402 80P3911 |
146.8GB 15K 80 Pin U320 SCSI Disk Drive Carrier |
| 3578 |
03N5270 03N5764 03N6335 26K5196 26K5296 26K5535 26K5565 71P7552 80P3157 80P3400 93N5270 |
300G 10 000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3278 |
00P2684 00P2685 00P5260 03N5279 03N5280 03N6344 03N6345 26K5180 26K5280 26K5531 55P4103 80P3163 |
73.4 GB 15 000 RPM Ultra3 SCSI Disk Drive Assembly |
| 內存 | ||
| 4447 |
00P5767 12R9238 |
2GB (4x512MB) DIMMS 208-pin 266MHz DDR SDRAM |
| 4445 |
00P5769 12R8614 |
4GB (4x1GB) DDR1 DIMMs 208-pin 266MHz SDRAM |
| 40449 |
00P5773 12R9257 |
8GB (4x2GB) DIMMS 208-pin 266MHz DDR SDRAM |
| 4444 |
12R9283 53P3222 |
1GB (4x256MB) DDR1 DIMMs 208-pin 266MHz SDRAM |
| 4450 |
12R9276 16R0711 |
16GB (4x4GB) DIMMs 208-pin 266MHz DDR Stacked SDRAM |
| 4443 |
12R9283 53P3222 |
512MB (2x256MB) DIMMs 208-pin 250MHz DDR1 SDRAM |
| 電源 | ||
| 7989 |
03N4489 03N4490 03N4491 03N4492 03N4493 03N4494 03N4496 03N4497 03N4498 03N4499 03N4500 03N4501 03N4502 03N4503 03N4504 03N4505 03N4628 03N4629 03N4630 03N4631 03N4632 03N4633 03N4634 03N4635 03N4636 03N4637 39J4710 97P5834 |
Power Supply 700 Watt AC Hot-swap Base or Redundant |
| 磁帶機 | ||
| 1955 |
23R2618 23R2619 |
36 72 GB 4mm Inte0rnal Tape Drive |
| 網卡 | ||
| 5706 |
00G2380 00P4289 00P6131 03N5297 03N6070 53P5450 80P4024 80P7033 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5701 |
00G2380 00P3056 00P4501 00P6130 03N6070 03N6524 09P5389 21P4745 53P5450 80P4024 80P7033 |
IBM 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 4962 |
00G2380 00P3056 03N6070 09P3196 09P5023 44P0321 |
10 100 Mbps Ethernet PCI Adapter II Type A-E |
| 5700 |
00P3055 00P4499 03N6981 05N6768 09P5386 10N8586 11P3847 12R9314 15R7536 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 5707 |
00P4290 00P6132 03N6973 05N6768 10N8587 11P3847 12R9314 15R7536 53P5450 80P4024 80P6451 80P7033 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 50721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R7583 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 5740 | 03N5444 |
4-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 5718 |
03N6969 05N6768 11P3847 12R9314 15R7536 16R0299 |
10 Gigabit Ethernet-SR PCI-X Adapter |
| 5719 |
03N6971 12R6249 12R9315 80P4066 80P5758 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 光纖卡 | ||
| 50758 |
280D 03N5012 03N5014 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5759 |
03N5027 03N5029 03N6768 10N8620 10N3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 5713 |
03N6056 26K6490 30R5219 32R1926 46K7342 49Y4236 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 5714 |
03N6058 30R5519 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| 5716 |
280B 03N6441 03N7069 05N6768 10N8622 11P3847 12R9314 15R7536 80P4543 80P4544 |
2 Gigabit Fibre Channel PCI-X Adapter |
| RAID卡 | ||
| 57037 |
571B 39J2012 39J3534 39J5024 42R4855 42R8739 44V5587 97P4152 97P4847 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter Cache battery pack 39J5555. |
| 5703 |
39J5105 44V3319 53P3880 80P2696 97P2702 97P3960 97P6516 97P6654 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 50736 |
39J1643 39J2862 39J3536 39J4996 39J5022 42R4860 42R8736 44V5591 42R4362 52P8558 |
PCI-X DDR 2.0 Dual Channel Ultra320 SCSI Adapter |
| 5712 |
44V3315 53P0978 97P2686 97P2687 97P3359 97P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 顯卡 | ||
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 適配卡 | ||
| 29047 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3602 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 47064 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 1820 |
26K7434 26K7452 |
PCI-X Dual-port 4x IB HCA |
| 20962 |
00P5920 33F8985 40F9904 41L5233 41L4235 41L5795 52G3379 73H2508 93H3662 93H5261 93H5270 93H6068 93H6086 00P5920 41L5233 41L5235 41L5795 |
2-Port Mult0iprotocol PCI Adapter |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422 PCI bus |
| 2944 |
43G0926 43G0938 93H6544 93H6545 93H8917 |
128-Port Asynchronous Controller PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 光驅 | ||
| 2640 |
00P4774 00P4775 03N5907 03N5908 39J1365 39J3522 39J3529 42R5290 42R5291 51P1834 97P5623 97P5624 |
4.7GB 8X 24X IDE Slimline DVD-ROM Drive |
| 50751 |
18P8166 39J1364 39J3531 39J3804 39J3805 39J3808 39J3809 39J5769 39J5770 97P3692 97P3693 97P6883 97P6884 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 線纜 | ||
| 39025 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 21018 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 70802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | 0Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 70801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 1839 |
39J4319 42R6243 44V5081 |
1.5 meter 4x Cable |
| 20954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 21014 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 80131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 5989 |
49Y0488 49Y0499 |
3m IBM Optical for the Mellanox ConnectX-2 QDR Adapter. |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 04-Port X.21 Cable |
| 4691 | 53P2237 | Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 | Rack Status Beacon Cable Junction Box Daisy0 Chain |
| 2952 |
71F0163 93H2900 93H5264 |
Cable 0V.35 |
| 20953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 60460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 64072 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 60487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 64095 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 60659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 66087 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 導軌 | ||
| 71066 |
42R3866 52P8414 |
IBM OEM Rack-mount Drawer Rail Kit |
| 7998 | 52P8411 | IBM Rack-mount Drawer Bezel and Hardware |
| 電池 | ||
|
04N2496 22R2717 42R5070 44L0313 |
Battery for raid card. | |
| 39J5555 |
Cache battery pack for RAID card 571B 1913 or 5737. |
|
| 其他 | ||
| 3637 |
04N7526 04N7527 04N7532 13F9959 31P7507 31P7509 31P7511 31P7513 31P7515 |
IBM T541H L150p 15" TFT Color Monitor |
| 3752 | 09P3035 | Service Package |
| 8136 |
09P4095 09P4096 40H2588 40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 3639 |
13F9959 31P9575 31P9577 31P9584 31P9587 31P9590 73P0261 |
L180P TFT 17" Color Display |
| 3638 |
22P4543 73P2310 73P2311 73P2313 73P2316 |
C220P 21" Color Monitor |
| 30636 |
31P9263 31P9264 31P9265 31P9266 |
L200P Flat Panel Monitor |
| 3645 |
39Y9919 40k5342 |
IBM T117 Flat Panel Monitor |
| 3641 |
40K7317 40K5341 73P4360 |
T115 TFT 15" Color Display |
| 265 | AIX Partition Specify | |
| 36040 | L171P TFT 17" Black Display | |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 50001 | Customer Solution Center | |
| 5983 | USB Keybd-US English Euro | |
| 2591 |
03N4962 33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 7305 | SDI Sof0tware Pre-Install Indicator | |
| 7432 | Advanced POWER Virtualization | |
| 9004 | Southern Hemisphere Designator for Monitors | |
| 9300 | Language Group Specify - US English | |
| 5005 | software preinstall | |
| 50959 |
Full Width Quiet Touch Keyboard -- USB Hungarian #208 |
|
|
7877 28D1 |
03N5895 03N5897 03N6004 03N6005 39J2521 39J2523 80P3510 80P4013 80P4137 80P4138 80P4179 97P3815 |
Media Backplane |
| 6B15 |
03N5849 80P7060 |
PCI adapter and riser enclosure |
| 292F |
42R5760 97P6777 |
Control panel and removable media tray assembly |
| 03N6786 | Operator panel | |
