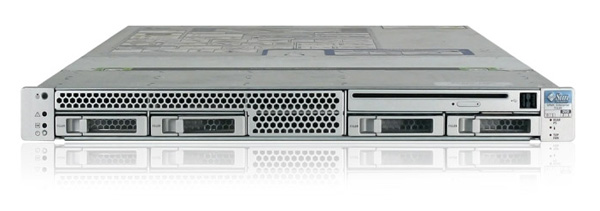

Sun T5120
| 整機信息 | |
| 機架類型 | 機架式 |
| 高度 | 1U |
| 處理器 |
一個 UltraSPARC T2 多核處理器，核心數為以下所列數量之一： 4 個核心（32 個線程）； 1.2 GHz 8 個核心（64 個線程）； 1.2、1.4 或 1.6 GHz |
| 內存插槽/容量 | 十六個 FBDIMM 插槽，支持 2 GB、4 GB 和 8 GB 模塊（最大系統內存容量為 128 GB） |
| 內部硬盤驅動器 |
最多八個 73 GB、146 GB 或 300 GB 2.5 英寸 SAS 硬盤驅動器（可熱插拔）。 最多四個固態驅動器可與基于磁盤的硬盤驅動器結合使用，因此總共可有八個硬盤驅動器存儲單元。 集成的硬盤驅動器控制器支持 RAID 0 和 RAID 1。 注 - 某些 T5120 模型最多只支持四個硬盤驅動器。 |
| 光學媒體設備 | 一個插槽裝入式超薄型 DVD 驅動器，支持 CD-R/W、DVD-R/W 和DVD+R/W |
| USB 端口 | 四個 USB 2.0 端口（正面 2 個、背面 2 個）。 |
| 以太網端口 |
四個 RJ-45 型 10/100/1000 Mbps 以太網自動協商端口（位于兩個單獨的控制器上） 注 - 通過向 I/O 擴展插槽中添加 XAUI 卡可以獲得 10 Gb 以太網端口。 每添加一個 XAUI 卡，均會禁用一個板載 1 Gb 以太網端口。 |
| PCI Express 接口 |
三個窄板型 PCI Express 插槽，符合以下插槽指定規格： 一個插槽 - PCIe， 8 通道 兩個插槽 - PCIe， 4 通道（另外，通過添加 Sun XAUI 卡可將這些插槽用于 10 Gb 以太網） 使用外部 I/O 擴展單元時最多可提供 5 個其他 PCIe 插槽 注 - 所有 PCIe 卡都是使用提供的豎隔板進行安裝 |
| 其它端口 |
服務器背面有下列連接器： 一個 RJ-45 串行管理端口 (SER MGT) - 用于與服務處理器的默認連接 一個 10/100 Mbps 以太網網絡管理端口 (NET MGT) - 用于與服務處理器的連接 一個 DB-9 串行端口 - 用于與主機的連接 |
| 冷卻系統 | 四到七個可熱交換風扇模塊（每個模塊兩個風扇） |
| 電源 |
兩個可熱交換電源單元，提供 N+1 冗余 電源電壓：AC 100-240V；50-60Hz；電源功率：720W |
| 遠程管理 |
板載 Integrated Lights Out Manager (ILOM)，具有兩個命令集： ILOM ALOM CMT 兼容 shell （傳統命令集） 這兩個命令集均可通過 RJ-45 串行接口和 10/100 Mbps 以太網接口來訪問。 |
| 密碼系統 | 處理器集成的密碼加速，支持行業標準安全密碼 |
| 操作系統 | 磁盤 0 預裝了 Solaris 10 操作系統（如果隨系統一起購買了硬盤驅動器）。 |
| 其它軟件 |
• Java Enterprise System • Logical Domains Manager • Sun Studio |
| 尺寸 |
寬度：425 毫米（16.75 英寸） 高度：44 毫米（1.75 英寸） 深度：714 毫米（28.13 英寸） |
| 重量 | 18kg |
| 配件信息 | ||
| 型號 | PN號 | 描述 |
| CPU | ||
| 540-7765 | 1.2GHz 8-Core System Board Assembly | |
| 540-7766 | 1.4GHz 8-Core System Board Assembly | |
| 540-7768 | 1.2GHz 4-Core System Board Assembly | |
| 541-2150 | 1.2GHz 8-Core System Board Assembly | |
| 541-2153 | 1.2GHz 6-Core System Board Assembly | |
| 541-2155 | 1.4GHz 8-Core System Board Assembly | |
| 541-2156 | 1.2GHz 4-Core System Board Assembly | |
| 系統板 | ||
| 501-7694 | Fan Board | |
| 501-7696 | Power Distribution Board | |
| 541-2112 | Fan Power Board | |
| 541-2127 | x16 PCI Express Riser Card Assembly | |
|
541-2127 501-7717 |
PCI Express Riser Card | |
| 541-2128 | x8 PCI Express/XAUI Riser Card Assembly | |
| 內存 | ||
| 501-7952 | 1GB DDR2-667/PC2-5300 DIMM | |
| 501-7953 | 2GB DDR2-667/PC2-5300 DIMM | |
| 501-7954 | 4GB DDR2-667/PC2-5300 DIMM | |
| 511-1161 | 2GB DDR2-667/PC2-5300 FBDIMM | |
| 511-1262 | 8GB DDR-667/PC2-5300 FBDIMM | |
| 511-1264 | 1GB DDR2-667/PC2-5300 FBDIMM | |
| SESX2A1Z | 2GB Memory Expansion (2 × 1GB) X-Option - Includes 2 (501-7952) DIMM modules | |
| SESX2A2Z | 2GB Memory Expansion (2 × 1GB) X-Option - Includes 2 (511-1264) DIMM modules | |
| SESX2B1Z | 4GB Memory Expansion (2 × 2GB) X-Option - Includes 2 (501-7953) DIMM modules | |
| SESX2B2Z | 4GB Memory Expansion (2 × 2GB) X-Option - Includes 2 (511-1161) DIMM modules | |
| SESX2C1Z | 8GB Memory Expansion (2 × 4GB) X-Option - Includes 2 (501-7954) DIMM modules | |
| SESX2D1Z | 16GB Memory Expansion (2 × 8GB) X-Option - Includes 2 (511-1262) DIMM modules | |
| 硬盤 | ||
| SESX3A11Z | 390-0285 | Fujitsu MAY2073RC (73GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 390-0376 | Hitachi HUC101473CSS300 (73.4GB - 10000 RPM SAS) Disk Drive |
| SESX3A11Z | 540-7354 | 73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3A21Z | 390-0382 | Seagate ST973451SS (73GB - 15000 RPM SAS) Disk Drive |
| SESX3A21Z | 540-7361 | 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SESX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive |
| SESX3C11Z | 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 390-0450 | Hitachi HUC103014CSS600 (146.8GB - 10000 RPM SAS) Disk Drive |
| SESX3C11Z | 540-7355 | 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3C11Z | 540-7868 | 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3G11Z | 390-0449 | Seagate ST93000SSUNG (300GB - 10000 RPM SAS) Disk Drive |
| SESX3G11Z | 390-0451 | Hitachi HUC103030CSS600 (300.0GB - 10000 RPM SAS) Disk Drive |
| SESX3G11Z | 540-7869 | 300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SESX3Y11Z | 371-4196 | 32GB Solid State Drive, SATA Interface |
| SESX3Y11Z | 540-7841 | 32GB Solid State Drive Assembly, SATA Interface |
| 硬盤背板 | ||
| 501-7699 | 4-Slot Disk Backplane, PATA DVD | |
| 501-7797 | 8-Slot Disk Backplane, PATA DVD | |
| 511-1282 | 4-Slot Disk Backplane, SATA DVD | |
| 511-1283 | 8-Slot Disk Backplane, SATA DVD | |
| RAID卡 | ||
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA |
| SGXPCIESAS-R-INT-Z | 375-3536 | 8-Port SAS Adaptec RAID HBA |
| SCSI卡 | ||
| SG-XPCIE2SCSIU320Z | 375-3357 | Dual-Channel Ultra320 LVD PCI Express Adapter |
| SG-XPCIE8SAS-E-Z | 375-3487 | PCI Express 8-Port Host Adapter |
| 網卡 | ||
| SESX7XA1Z | 501-7489 | 10GbE XAUI CardL |
| SESX7XT1Z | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range (SR)L |
| SESX7XT2Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range (LR) |
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X5558A | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range |
| X5560A-Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 適配卡 | ||
| 530-3100 | RJ45 to DB9 Adapter | |
| X1236A-Z | 375-3382 | Dual port 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
| X3000A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X4240A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 顯卡 | ||
| X3000A | 375-3545 | XVR-300 x8 Graphics Accelerator Kit |
| X4240A |
605-4668 375-3458 |
XVR-300 Graphics Accelerator |
| 光纖卡 | ||
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| 電源 | ||
| 300-2105 | 1200 Watt DC Input Power Supply, Type D204 | |
| 300-2186 | 660 Watt DC Input Power Supply, Type D218 | |
| SECX9PS11Z | 300-2015 | 658 Watt AC Power Supply, Type A221 |
| SECX9PS41Z | 300-2234 | 720 Watt AC Power Supply, Type A236 |
| 電池 | ||
| 371-2210 | CR2032 3V Battery | |
| 371-3253 | Lithium Ion Battery Module | |
| 光驅 | ||
| 390-0442 | 8x SATA DVD-Writer/24x CD-Writer | |
|
541-3493 390-0442 |
SATA DVD-Writer/CD-Writer - USB Board Assembly | |
| SESX9DV1Z |
390-0337 390-0403 |
8x PATA DVD-Writer/24x CD-Writer |
| SESX9DV1Z |
541-2110 390-0337 |
PATA DVD-Writer/CD-Writer - USB Board Assembly |
| 風扇 | ||
| 310-0164 | 40MM 4-Pole Fan | |
| 330-4683 | Fan Connector Cover | |
| 371-2838 | Fan Board | |
| 541-1984 | Fan Module | |
| 541-2802 | Fan Module | |
| 導軌 | ||
|
SESX9RK1Z 371-2741 |
Screw-Mount Slide Rail Rackmount Kit | |
|
SESX9RK2Z 371-2740 |
Snap-In Slide Rail Rackmount Kit | |
| 線纜 | ||
| 530-3623 | Shielded RJ45 to RJ45 Cable, 4M | |
| 530-3855 | Mini SAS Cable, 560mm | |
| 530-3862 | Mini SAS Cable, 390mm | |
| 530-3864 | 4x Mini SAS Cable, 510mm | |
| 530-3895 | 4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm | |
| 530-3896 | Mini SAS Cable Kit | |
| 530-3904 | Mini SAS Cable, 460mm | |
| 530-3927 | PDB to System Board Ribbon Cable | |
| 560-2911 | SAS Cable Kit | |
| SECX9SA1Z | 530-3893 | 4x Mini SAS Cable, SFF-8087 to SFF-8087, 600mm |
| SECX9SA1Z | 530-4118 | 4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm |
| SECX9SA1Z | 530-4119 | 4x Mini SAS Cable, SFF-8087 to SFF-8087, 710mm |
| SECX9SA1Z | 560-2920 | Mini SAS Cable Kit |
|
X3000A X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| X311L | 180-1097 | Localized (AC) Power Cord Kit - North America/Asia |
| X312E | 180-1982 | Localized Power Code Kit - China |
| X312F | 180-1999 | Localized Power Cord Kit - Argentina |
| X312G | 180-1662 | Localized Power Cord Kit/Korea IEC 320 C13 to KSC 8305-15A/250V 2.5M Black |
| X312L | 180-1993 | Localized Power Cord Kit - Continental Europe |
| X314L | 180-1994 | Localized Power Cord Kit - Swiss |
| X317L | 180-1997 | Localized Power Cord Kit - U.K. |
| X332A | 180-2121 | Localized Power Cord Kit/Taiwan IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black |
| X383L |
180-1995 530-1819 530-180-1995 |
IEC 320 C13 to Asfnit 107 - 10A/250V 2.0M Black |
| X384L | 180-1996 | Localized Power Cord Kit - Italian |
| X386L | 180-1998 | Localized Power Cord Kit - Australian |
| X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| 機殼 | ||
| 330-4442 | Top Bracket | |
| 330-4443 | Bottom Bracket | |
| 541-1986 | Base Chassis Assembly | |
| 541-2497 | Chassis Subassembly | |
| 其它 | ||
| 150-4065 | Interlock Switch Magnet | |
| 330-4418 | DVD Interconnect Holder | |
| 330-4419 | Lightpipe Button | |
| 330-4420 | Lightpipe Holder | |
| 330-4421 | Right Side Endcap Lightpipe | |
| 330-4424 | Power Button | |
| 330-5056 | DVD Interconnect Holder | |
| 341-3050 | PCI Bar | |
| 341-3168 | Bracket | |
| 341-3559 | 1U Power Supply Unit Filler Panel | |
| 341-3572 | Ventilated 4-Disk Filler Panel | |
| 341-4072 | DVD Filler Panel | |
| 343-0532 | Rear Foam Gasket | |
| 501-7698 | USB Board | |
| 501-7721 | XAUI Riser Card | |
| 501-7725 | Connector Board, PATA DVD | |
| 511-1281 | Connector Board, SATA DVD | |
| 525-2344 | System Configuration PROM | |
| 530-3510 | Magnetic Interlock Switch | |
| 541-1982 | Enclosure Assembly | |
| 541-1988 | Top Cover | |
| 541-2075 | Bus Bar Set | |
| 541-2115 | Disk Cage | |
| 541-2123 | Marlin Bracket 2.5" | |
| 541-2126 | Left Side Endcap Lightpipe Assembly | |
| 541-2183 | Connector Board Assembly, PATA DVD | |
| 541-2629 | Disk Drive Filler Panel | |
| 541-2636 | Lightpipe Assembly | |
| 541-2732 | USB Assembly | |
| 541-2737 | Riser Bracket | |
| 541-2739 | PCI Cross Beam | |
| 541-2865 | Right Side Cap | |
| 541-2866 | Left Side Cap | |
| 541-3512 | Connector Board Assembly, SATA DVD | |
| 541-3686 | DVD Bezel | |
| SESX9CA1Z | 371-2742 | Cable Management Arm |
| SESX9DV1Z | 330-4418 | DVD Interconnect Holder |
| SESX9DV1Z | 501-7698 | USB Board |
| SESX9DV1Z | 541-2111 | DVD Bezel |
| X4447A-Z | 371-2207 | Bracket Low-Profile |
| X4447A-Z | 371-2348 | Bracket Standard |
